Product-DIN7337

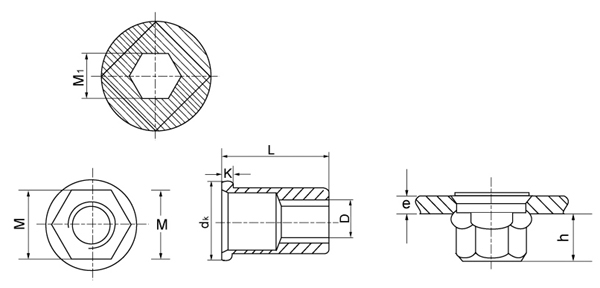

 RIVET NUT >> Flat Head Hex WK-PL

　

SIZE D Grip Range
e		 h
Ref.		 d0
+0.15
-0.05		 d
+0.03
-0.20		 dk
±0.30

K
±0.20

L
±0.30

WK-PL-M4 M4 0.5-2.5 6.5 6 6 9 0.8 10.8
WK-PL-M5 M5 0.5-3.0 8.0 7 7 10 1.0 13.0
WK-PL-M6 M6 0.5-3.5 8.5 9 9 13 1.5 15.8
WK-PL-M8 M8 0.5-3.5 10.5 11 11 15 1.5 18.0
WK-PL-M10 M10 0.5-3.5 12.0 12 12 17 1.8 20.3
WK-PL-M12 M12 0.5-3.5 16.0 15 15 19 1.8 24.3
　
