Product-DIN7337

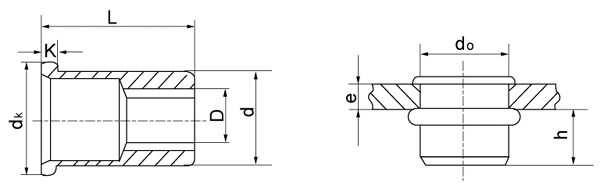

 RIVET NUT >> Flat Head WK-PTR



SIZE D Grip Range
e
h
Ref.
d0
+0.15
-0.05
d
+0.03
-0.20
dk
±0.30

K
±0.20

L
±0.30

WK-PTR-M3 M3R M3 0.5-2.0 4.5 5 5 7 0.8 8.8
WK-PTR-M4 M4R M4 0.5-2.0 6.5 6 6 9 0.8 10.8
WK-PTR-M5 M5R M5 0.5-2.5 8.0 7 7 10 1.0 13.0
WK-PTR-M6 M6R M6 0.5-3.0 9.0 9 9 13 1.5 15.0
WK-PTR-M8 M8R M8 0.5-3.5 11.5 11 11 15 1.5 18.
WK-PTR-M10 M10R M10 0.5-3.5 12.5 13 13 17 1.8 20.3
WK-PTR-M12 M12R M12 0.5-3.5 15.5 15 15 19 1.8 24.3
