Product-DIN7337

 Closed Type Blind Rivet >> LARGE HEAD >> All Stainless Steel WK-BBF-LF-S

All Stainless Steel WK-BBF-LF-S
　

　

MATERIAL
BODY:   304 Stainless Steel
MANDREL:   420 Stainless Steel		 FINISH
BODY:   Polished
MANDREL:   Polished

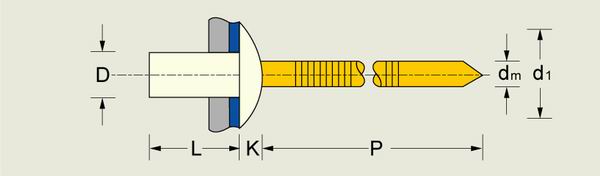

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10		 WK-BBF-LF-S 320100
WK-BBF-LF-S 320120		 10.0
12.0		 9.5
+0.3
-0.4		 9.5
+0.3
-0.4		 2.0 3.3 27 1.9 2000 23200
4.0
+0.08
-0.15		 WK-BBF-LF-S 400120
WK-BBF-LF-S 400140
WK-BBF-LF-S 400160
WK-BBF-LF-S 400180		 12.0
14.0
16.0
18.0		 12.0
+0.5
-1.0		 12.0
+0.5
-1.0		 2.2 4.1 27 2.3 3120 3560
4.8
+0.08
-0.15		 WK-BBF-LF-S 480120
WK-BBF-LF-S 480140
WK-BBF-LF-S 480160
WK-BBF-LF-S 480180		 12.0
14.0
16.0
18.0		 14.0
+0.5
-1.0		 14
+0.5
-1.0		 2.5 4.9 27 2.9 4000 4400
　
