Product-DIN7337

 Closed Type Blind Rivet >> CSK HEAD >> Alu./Steel WK-ASF-C

Alu./Steel WK-ASF-C
　

　

MATERIAL
BODY:   5056 Alu. Alloy
MANDREL:   Steel		 FINISH
BODY:   Polished
MANDREL:   Phosphated

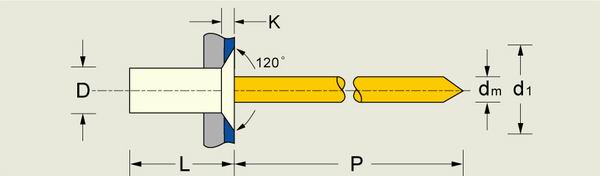

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10		 WK-ASF-C 320080
WK-ASF-C 320095
WK-ASF-C 320110
WK-ASF-C 320125
WK-ASF-C 320135		 8.0
9.5
11.0
12.5
13.5		 2.0-3.5
3.5-5.0
5.0-6.5
6.5-8.0
8.0-9.0		 6.5
+0.2
-0.7		 1.3 3.3 27 1.7 1100 1250
4.0
+0.08
-0.15		 WK-ASF-C 400095
WK-ASF-C 400110
WK-ASF-C 400125
WK-ASF-C 400145		 9.5
11.0
12.5
14.5		 2.5-4.5
4.5-6.5
6.5-8.0
8.0-10.0		 8.0
+0.4
-1.0		 1.7 4.1 27 27 1600 2200
4.8
+0.08
-0.15		 WK-ASF-C 480095
WK-ASF-C 480110
WK-ASF-C 480130
WK-ASF-C 480145
WK-ASF-C 480160
WK-ASF-C 480180
WK-ASF-C 480210		 9.5
11.0
13.0
14.5
16.0
18.0
21.0		 3.0-4.5
4.5-6.0
6.5-8.0
8.0-9.5
9.5-11.0
11.0-13.0
13.0-16.0		 9.5
+0.6
-1.0		 2.0 4.9 27 27 2230 3100
　
