Product-DIN7337

 Closed Type Blind Rivet >> NORMAL >> Alu./Steel WK-ASF

Alu./Steel WK-ASF
　

　

MATERIAL
BODY:   5056 Alu.Alloy
MANDREL:    Steel		 FINISH
BODY:   Polished
MANDREL:   Phosphated

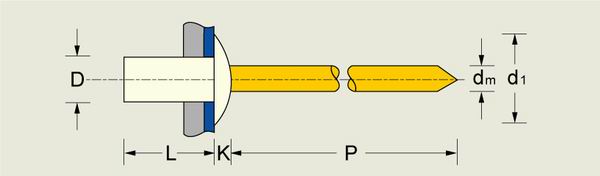

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10		 WK-ASF 320065
WK-ASF 320080
WK-ASF 320095
WK-ASF 320110
WK-ASF 320125		 6.5
8.0
9.5
11.0
12.5		 0.5-2.0
2.0-3.5
3.5-5.0
5.0-6.5
6.5-8.0		 6.5
+0.2
-0.7		 1.3 3.3 27 1.7 1100 1250
4.0
+0.08
-0.15		 WK-ASF 400080
WK-ASF 400095
WK-ASF 400110
WK-ASF 400125
WK-ASF 400150		 8.0
9.5
11.0
12.5
15.0		 0.5-3.5
3.5-5.0
5.0-6.5
6.5-8.0
8.0-10.5		 8.0
+0.4
-1.0		 1.7 4.1 27 2.18 1600 2200
4.8
+0.08
-0.15		 WK-ASF 480080
WK-ASF 480095
WK-ASF 480110
WK-ASF 480130
WK-ASF 480145
WK-ASF 480160
WK-ASF 480180
WK-ASF 480210
WK-ASF 480250		 8.0
9.5
11.0
13.0
14.5
16.0
18.0
21.0
25.0		 1.0-3.0
3.0-5.0
5.0-6.5
6.5-8.0
8.0-9.5
9.5-11.0
11.0-13.0
13.0-16.0
16.0-20.0		 9.5
+0.6
-1.0		 2.0 4.9 27 2.63 223 3100
6.4
+0.08
-0.15		 WK-ASF 640125
WK-ASF 640160
WK-ASF 640180
WK-ASF 640200
WK-ASF 640250		 12.5
16.0
18.0
20.0
25.0		 1.5-6.0
6.0-8.5
8.5-10.5
10.5-12.5
12.5-17.5		 12.8
+0.6
-1.0		 2.7 6.5 27 3.7 4000 4900
　
