Product-DIN7337

 Closed Type Blind Rivet >> NORMAL >> Steel/Steel WK-SSF

Steel/Steel WK-SSF
　

　

MATERIAL
BODY:   Steel
MANDREL:   Steel		 FINISH
BODY:   Zinc Plated
MANDREL:   Zinc Plated

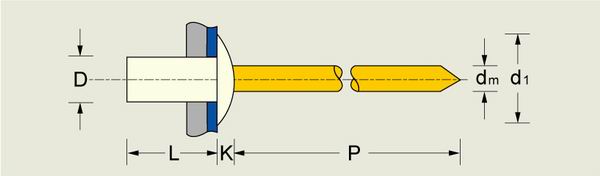

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10		 WK-SSF 320060
WK-SSF 320080
WK-SSF 320095
WK-SSF 320120		 6.0
8.0
9.5
12.0		 0.5-1.5
1.5-3.0
3.0-5.0
5.0-6.5		 6.5
+0.2
-0.7		 1.3 3.3 27 1.9 1150 1300
4.0
+0.08
-0.15		 WK-SSF 400060
WK-SSF 400080
WK-SSF 400100
WK-SSF 400120
WK-SSF 400150		 6.0
8.0
10.0
12.0
15.0		 0.5-1.5
1.5-3.0
3.0-5.0
5.0-6.5
6.5-10.0		 8.0
+0.4
-1.0		 1.7 4.1 27 2.3 1700 1860
4.8
+0.08
-0.15		 WK-SSF 480080
WK-SSF 480100
WK-SSF 480125
WK-SSF 480150
WK-SSF 480180
WK-SSF 480210		 8.0
10.0
12.5
15.0
18.0
21.0		 1.0-3.0
3.0-5.0
5.0-7.0
7.0-9.5
9.5-12.5
13.0-16.0		 9.5
+0.6
-1.0		 2.0 4.9 27 2.9 2400 2800
6.4
+0.08
-0.15		 WK-SSF 640150
WK-SSF 640160
WK-SSF 640210		 15.0
16.0
21.0		 3.0-6.5
6.5-8.0
8.0-12.5		 12.8
+0.6
-1.0		 2.7 6.5 27 3.8 3600 4000
　
