Product-DIN7337

 Closed Type Blind Rivet >> NORMAL >> All Stainless Steel WK-BBF-S

All Stainless Steel WK-BBF-S
　

　

MATERIAL
BODY:   304 Stainless Steel
MANDREL:   420 Stainless Steel		 FINISH
BODY:   Polished
MANDREL:   Polished

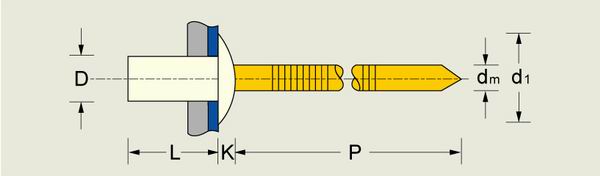

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10		 WK-BBF-S 320060
WK-BBF-S 320080
WK-BBF-S 320095
WK-BBF-S 320120
WK-BBF-S 320140		 6.0
8.0
9.5
12.0
14.0		 0.5-1.5
1.5-3.0
3.0-4.5
4.5-6.5
6.5-8.0		 6.5
+0.2
-0.7		 1.3 3.3 27 1.9 2000 2200
4.0
+0.08
-0.15		 WK-BBF-S 400060
WK-BBF-S 400080
WK-BBF-S 400095
WK-BBF-S 400120
WK-BBF-S 400140
WK-BBF-S 400160		 6.0
8.0
9.5
12.0
14.0
16.0		 0.5-1.5
1.5-3.0
3.0-5.0
5.0-6.5
6.5-8.0
8.0-11.0		 8.0
+0.4
-1.0		 1.7 4.1 27 2.3 3120 3560
4.8
+0.08
-0.15		 WK-BBF-S 480080
WK-BBF-S 480095
WK-BBF-S 480120
WK-BBF-S 480140
WK-BBF-S 480160
WK-BBF-S 480180
WK-BBF-S 480200		 8.0
9.5
12.0
14.0
16.0
18.0
20.0		 1.0-3.0
3.0-5.0
5.0-6.5
6.5-8.0
8.0-9.5
9.5-11.0
11.0-12.5		 9.5
+0.6
-1.0		 2.0 4.9 27 2.9 4000 4400
6.4
+0.08
-0.15		 WK-BBF-S 640120
WK-BBF-S 640160
WK-BBF-S 640180
WK-BBF-S 640200
WK-BBF-S 640250		 12.0
16.0
18.0
20.0
25.0		 1.5-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-17.0		 12.8
+0.6
-1.0		 2.7 6.5 27 3.8 6000 8000
　
