Product-DIN7337

 Closed Type Blind Rivet >> NORMAL >> Alu./Stainless Steel WK-ABF

Alu./Stainless Steel WK-ABF
　

　

MATERIAL
BODY:   5056 Alu. Alloy
MANDREL:   Stainless Steel		 FINISH
BODY:   Polished
MANDREL:   Polished

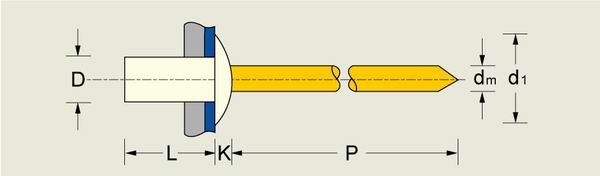

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10		 WK-ABF 320065
WK-ABF 320080
WK-ABF 320098
WK-ABF 320110
WK-ABF 320125		 6.5
8.0
9.5
11.0
12.5		 0.5-2.0
2.0-3.5
3.5-5.0
5.0-6.5
6.5-8.0		 6.5
+0.2
-0.7		 1.3 3.3 27 1.7 1100 1250
4.0
+0.08
-0.15		 WK-ABF 400080
WK-ABF 400095
WK-ABF 400110
WK-ABF 400125
WK-ABF 400150		 8.0
9.5
11.0
12.5
15.0		 0.5-3.5
3.5-5.0
5.0-6.5
6.5-8.0
8.0-10.5		 8.0
+0.4
-1.0		 1.7 4.1 27 2.18 1600 2200
4.8
+0.08
-0.15		 WK-ABF 480080
WK-ABF 480095
WK-ABF 480110
WK-ABF 480125
WK-ABF 480140
WK-ABF 480160
WK-ABF 480180
WK-ABF 480210
WK-ABF 480250		 8.0
9.5
11.0
12.5
14.0
16.0
18.0
21.0
25.0		 1.0-3.0
3.0-5.0
5.0-6.0
6.0-7.5
7.5-9.0
9.0-11.0
11.0-13.0
13.0-16.0
16.0-20.0		 9.5
+0.6
-1.0		 2.0 4.9 27 2.63 2230 3100
　
