Product-DIN7337

 Open Type Blind Rivet >> SPECIAL >> WK-ABMG

WK-ABMG


MATERIAL
BODY:   5052 Alu. Alloy
MANDREL:   Stainless Steel
FINISH
BODY:  Polished
MANDREL:  Polished
欢迎您选择我们的产品!我们提供您美标德标的产品技术参数 ,如果您希望浏览德标参数请点击这里:德标参数,现在您将浏览的是美标参数

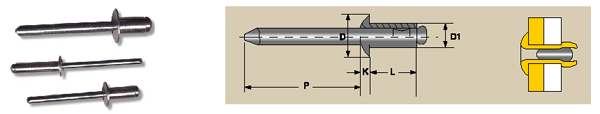

D1
NOM.
DRILL NO. &HOLE SIZE ART. CODE GRIP RANGE L (MAX) D
NOM.
K
MAX
P
MIN.
SHEAR
LBS
TENSILE
LBS
INCH MM INCH MM
1/8"
3.2mm
#30
3.3-3.4
WK-ABMG42 0.031-0.134 0.8-3.4 0.283 7.2 0.252"
6.4
0.051"
1.30
1.06"
27
135
600N
202
900N
WK-ABMG43 0.031-0.187 0.8-4.8 0.331 8.4
WK-ABMG44 0.046-0.250 1.2-6.4 0.390 9.9
WK-ABMG45 0.156-0.312 4.0-7.9 0.453 11.5
WK-ABMG46 0.216-0.375 5.5-9.5 0.516 13.1
WK-ABMG47 .250-0.437 6.4-11.1 0.610 15.5
5/32"
4.0mm
#20
4.1-4.2
WK-ABMG52 0.020-0.125 0.5-3.2 0.283 7.2 0.312"
7.9
0.063"
1.60
1.06"
27
213
950N
337
1500N
WK-ABMG54 0.046-0.250 1.2-6.4 0.390 9.9
WK-ABMG55 0.125-0.312 3.2-7.9 0.453 11.5
WK-ABMG56 0.156-0.375 4.0-9.5 0.516 13.1
WK-ABMG57 0.250-0.437 6.4-11.1 0.610 15.5
WK-ABMG58 0.250-0.500 6.4-12.7 0.681 17.3
3/16"
4.8mm
#11
4.9-5.0
WK-ABMG64 0.062-0.250 1.6-6.4 0.421 10.7 0.386"
9.8
0.071"
1.80
1.06"
27
296
1320N
450
2000N
WK-ABMG65 0.079-0.315 2.0-8.0 0.492 12.5
WK-ABMG66 0.125-0.375 3.2-9.5 0.587 14.9
WK-ABMG67 0.187-0.437 4.8-11.1 0.610 15.5
WK-ABMG68 0.250-0.500 6.4-12.7 0.681 17.3
WK-ABMG610 0.345-0.590 9.0-15.0 0.783 19.9
WK-ABMG612 0.500-0.781 12.7-19.8 0.992 25.2
