Product-DIN7337

 Open Type Blind Rivet >> LARGE HEAD >> 5154 Alu./SteelWK-3-ASKLF

5154 Alu./Steel WK-3-ASKLF
　

　

MATERIAL
BODY:   5154 Alu.Alloy
MANDREL:   Steel		 FINISH
BODY:   Polished
MANDREL:   Zinc Plated

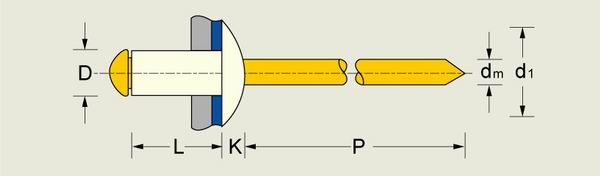

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10		 WK-3-ASKLF 3206
WK-3-ASKLF 3208
WK-3-ASKLF 3210
WK-3-ASKLF 3212
WK-3-ASKLF 3214
WK-3-ASKLF 3216		 6.0
8.0
10.0
12.0
14.0
16.0		 1.0-3.5
3.5-5.0
5.0-7.0
7.0-9.0
9.0-11.0
11.0-13.0		 9.5
+0.3
-0.7		 2.00 3.3 27 　1.78 700 950
4.0
+0.08
-0.15		 WK-3-ASKLF 4006
WK-3-ASKLF 4008
WK-3-ASKLF 4010
WK-3-ASKLF 4012
WK-3-ASKLF 4014
WK-3-ASKLF 4016
WK-3-ASKLF 4018
WK-3-ASKLF 4020
WK-3-ASKLF 4025		 6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0		 1.0-3.0
3.0-5.0
5.0-6.5
6.5-8.5
8.5-10.5
10.5-12.5
12.5-14.5
14.5-16.5
16.5-21.5		 12.0
+0.5
-1.0		 2.20 4.1 27 　2.18 1050 1600
4.8
+0.08
-0.15		 WK-3-ASKLF 4808
WK-3-ASKLF 4810
WK-3-ASKLF 4812
WK-3-ASKLF 4814
WK-3-ASKLF 4816
WK-3-ASKLF 4818
WK-3-ASKLF 4820
WK-3-ASKLF 4822
WK-3-ASKLF 4824
WK-3-ASKLF 4825
WK-3-ASKLF 4830
WK-3-ASKLF 4835		 8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
25.0
30.0
35.0		 1.5-4.0
4.0-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0
16.0-18.0
18.0-20.0
20.0-21.0
21.0-25.0
25.0-30.0		 14
+0.5
-1.0		 2.50 4.9 27 　2.70 1700 2250
5.0
+0.08
-0.15		 WK-3-ASKLF 5008
WK-3-ASKLF 5010
WK-3-ASKLF 5012
WK-3-ASKLF 5014
WK-3-ASKLF 5016
WK-3-ASKLF 5018
WK-3-ASKLF 5020
WK-3-ASKLF 5025
WK-3-ASKLF 5030		 8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0		 2.5-4.5
4.5-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0
16.0-21.0
21.0-25.0		 14
+0.5
-1.0		 2.50 5.1 27 2.70 1900 2500
　
