Product-DIN7337

 Open Type Blind Rivet >> LARGE HEAD >> Steel/Steel WK-SSKLF



MATERIAL
BODY :   Steel
MANDREL :   Steel
FINISH
BODY :   Zinc Plated
MANDREL :  Zinc Plated

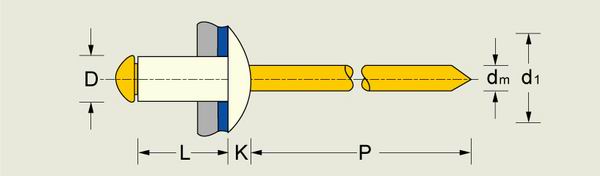

D Art. Code L
[+1/-0.2]
Grip Range d1 K Drill
Φ
P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10
WK-SSKLF 3206
WK-SSKLF 3208
WK-SSKLF 3210
WK-SSKLF 3212
WK-SSKLF 3214
WK-SSKLF 3216
6.0
8.0
10.0
12.0
14.0
16.0
1.0-3.0
3.0-5.0
5.0-7.0
7.0-9.0
9.0-11.0
11.0-13.0
9.5
+0.3
-0.7
2.00 3.3 27 1.92 1160 1380
4.0
+0.08
-0.15
WK-SSKLF 4006
WK-SSKLF 4008
WK-SSKLF 4010
WK-SSKLF 4012
WK-SSKLF 4014
WK-SSKLF 4016
WK-SSKLF 4018
WK-SSKLF 4020
WK-SSKLF 4025
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
1.0-3.0
3.0-5.0
5.0-6.5
6.5-8.5
8.5-10.5
10.5-12.5
12.5-14.5
14.5-16.5
16.5-21.5
12.0
+0.5
-1.0
2.20 4.1 27 2.42 1700 2200
4.8
+0.08
-0.15
WK-SSKLF 4808
WK-SSKLF 4810
WK-SSKLF 4812
WK-SSKLF 4814
WK-SSKLF 4816
WK-SSKLF 4818
WK-SSKLF 4820
WK-SSKLF 4822
WK-SSKLF 4824
WK-SSKLF 4825
WK-SSKLF 4830
WK-SSKLF 4835
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
25.0
30.0
35.0
2.5-4.0
4.0-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0
16.0-18.0
18.0-20.0
20.0-21.0
21.0-25.0
25.0-30.0
16
+0.5
-1.0
2.50 4.9 27 2.92 2400 3100
5.0
+0.08
-0.15
WK-SSKLF 5008
WK-SSKLF 5010
WK-SSKLF 5012
WK-SSKLF 5014
WK-SSKLF 5016
WK-SSKLF 5018
WK-SSKLF 5020
WK-SSKLF 5025
WK-SSKLF 5030
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0
2.5-4.5
4.5-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0
16.0-21.0
21.0-25.0
14
+0.5
-1.0
2.50 5.1 27 2.92 2600 4000
