Product-DIN7337

 Open Type Blind Rivet >> CSK HEAD >> 5050 Alu./Steel WK-1-ASKC

5050 Alu./Steel WK-1-ASKC
　

　

MATERIAL
BODY:   5050 Alu.Alloy
MANDREL:   Steel		 FINISH
BODY:   Polished
MANDREL:   Zinc Plated

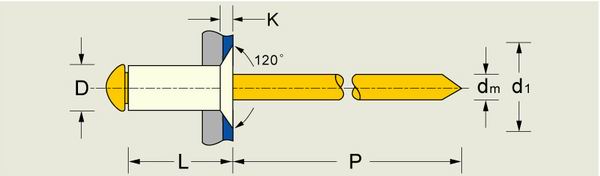

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.0
+0.08
-0.10		 WK-1-ASKC 3006
WK-1-ASKC 3008
WK-1-ASKC 3010
WK-1-ASKC 3012
WK-1-ASKC 3014		 6.0
8.0
10.0
12.0
14.0		 1.5-3.5
3.5-5.5
5.5-7.0
7.0-9.0
9.0-11.0		 6.0
+0.0
-0.4		 0.9 3.1 27 　1.78 300 400
3.2
+0.08
-0.10		 WK-1-ASKC 3206
WK-1-ASKC 3208
WK-1-ASKC 3210
WK-1-ASKC 3212
WK-1-ASKC 3214
WK-1-ASKC 3216		 6.0
8.0
10.0
12.0
14.0
16.0		 1.5-3.5
3.5-5.5
5.5-7.0
7.0-9.0
9.0-11.0
11.0-13.0		 6.0
+0.0
-0.4		 0.9 3.3 27 　1.78 400 500
4.0
+0.08
-0.15		 WK-1-ASKC 4006
WK-1-ASKC 4008
WK-1-ASKC 4010
WK-1-ASKC 4012
WK-1-ASKC 4014
WK-1-ASKC 4016
WK-1-ASKC 4018
WK-1-ASKC 4020		 6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0		 1.5-3.0
3.0-5.0
5.0-6.5
6.5-8.5
8.5-10.5
10.5-12.5
12.5-14.5
14.5-16.5		 7.5
+0.0
-0.5		 1.0 4.1 27 　2.18 800 1000
4.8
+0.08
-0.15		 WK-1-ASKC 4808
WK-1-ASKC 4810
WK-1-ASKC 4812
WK-1-ASKC 4814
WK-1-ASKC 4816
WK-1-ASKC 4818
WK-1-ASKC 4820
WK-1-ASKC 4825
WK-1-ASKC 4830		 8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0		 2.5-4.5
4.5-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0
16.0-21.0
21.0-25.0		 9.0
+0.0
-0.5		 1.2 4.9 27 　2.70 1000 1200
5.0
+0.08
-0.15		 WK-1-ASKC 5008
WK-1-ASKC 5010
WK-1-ASKC 5012
WK-1-ASKC 5014
WK-1-ASKC 5016
WK-1-ASKC 5018
WK-1-ASKC 5020
WK-1-ASKC 5025
WK-1-ASKC 5030		 8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0		 2.5-4.5
4.5-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0
16.0-21.0
21.0-25.0		 9.0
+0.0
-0.5		 1.2 5.1 27

2.70

 1100 1250
　
