Product-DIN7337

 Open Type Blind Rivet >> NORMAL >> Alu./Stainless Steel WK-ABK

Alu./Stainless Steel WK-ABK




MATERIAL
BODY:   5056 Alu.Alloy
MANDREL:    Stainless Steel
FINISH
BODY:   Polished
MANDREL:   Polished

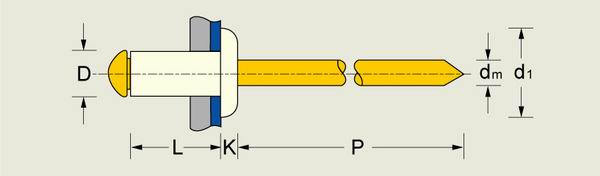

D Art. Code L
[+1/-0.2]
Grip Range d1 K Drill
Φ
P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10
WK-ABK 3206
WK-ABK 3208
WK-ABK 3210
WK-ABK 3212
WK-ABK 3214
WK-ABK 3216
WK-ABK 3218
WK-ABK 3220
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
1.5-3.5
3.5-5.5
5.5-7.0
7.0-9.0
9.0-11.0
11.0-13.0
13.0-15.0
15.0-17.0
6.5
+0.0
-0.7
0.80
±0.3
3.3 27  1.78 780 1000
4.0
+0.08
-0.15
WK-ABK 4006
WK-ABK 4008
WK-ABK 4010
WK-ABK 4012
WK-ABK 4014
WK-ABK 4016
WK-ABK 4018
WK-ABK 4020
WK-ABK 4025
WK-ABK 4030
WK-ABK 4035
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0
35.0
1.5-3.0
3.0-5.0
5.0-6.5
6.5-8.5
8.5-10.5
10.5-12.5
12.5-14.5
14.5-16.5
15.6-21.5
21.5-26.0
26.0-30.0
8.0
+0.0
-1.0
1.0
±0.3
4.1 27  2.18 1200 1600
4.8
+0.08
-0.15
WK-ABK 4806
WK-ABK 4808
WK-ABK 4810
WK-ABK 4812
WK-ABK 4814
WK-ABK 4816
WK-ABK 4818
WK-ABK 4820
WK-ABK 4825
WK-ABK 4830
WK-ABK 4835
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0
35.0
1.5-2.5
2.5-4.0
4.0-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0
16.0-20.0
20.0-25.0
25.0-30.0
9.5
+0.0
-1.0
1.1
±0.4
4.9 27  2.70 1700 2250
