Product-DIN7337

 Open Type Blind Rivet >> NORMAL >> 5052 Alu./Steel WK-2-ASK

5052 Alu./Steel WK-2-ASK
　

　

MATERIAL
BODY:   5052 Alu.Alloy
MANDREL:    Steel		 FINISH
BODY:   Polished
MANDREL:   Zinc Plated

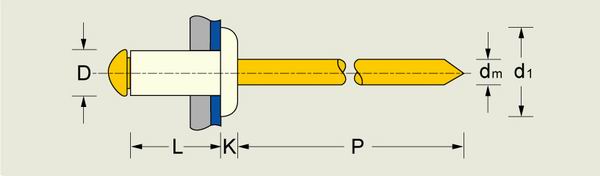

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

2.4
+0.08
-0.01		 WK-2-ASK 2404
WK-2-ASK 2406
WK-2-ASK 2408
WK-2-ASK 2410
WK-2-ASK 2412		 4.0
6.0
8.0
10.0
12.0		 0.5-2.0
2.0-4.0
4.0-6.0
6.0-8.0
8.0-10.0		 5.0
+0.0
-0.7
　		 0.65
±0.2
　		 2.5 27 　1.40 310 400
3.0
+0.08
-0.10		 WK-2-ASK 3006
WK-2-ASK 3008
WK-2-ASK 3010
WK-2-ASK 3012
WK-2-ASK 3014
WK-2-ASK 3016
WK-2-ASK 3018
WK-2-ASK 3020		 6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0		 1.0-3.5
3.5-5.5
5.5-7.0
7.0-9.0
9.0-11.0
11.0-13.0
13.0-15.0
15.0-17.0		 6.5
+0.0
-0.7		 0.80
±0.3		 3.1 27 　1.78 550 650
3.2
+0.08
-0.10		 WK-2-ASK 3206
WK-2-ASK 3208
WK-2-ASK 3210
WK-2-ASK 3212
WK-2-ASK 3214
WK-2-ASK 3216
WK-2-ASK 3218
WK-2-ASK 3220
WK-2-ASK 3225		 6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0		 1.0-3.5
3.5-5.5
5.5-7.0
7.0-9.0
9.0-11.0
11.0-13.0
13.0-15.0
15.0-17.0
17.0-22.0		 6.5
+0.0
-0.7		 0.80
±0.3		 3.3 27 　1.78 650 800
4.0
+0.08
-0.15		 WK-2-ASK 4006
WK-2-ASK 4008
WK-2-ASK 4010
WK-2-ASK 4012
WK-2-ASK 4014
WK-2-ASK 4016
WK-2-ASK 4018
WK-2-ASK 4020
WK-2-ASK 4025
WK-2-ASK 4030
WK-2-ASK 4035		 6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0
35.0		 1.0-3.0
3.0-5.0
5.0-6.5
6.5-8.5
8.5-10.5
10.5-12.5
12.5-14.5
14.5-16.5
16.5-21.5
21.5-26.0
26.0-30.0		 8.0
+0.0
-1.0		 1.0
±0.3		 4.1 27 　2.18 900 1100
4.8
+0.08
-0.15		 WK-2-ASK 4806
WK-2-ASK 4808
WK-2-ASK 4810
WK-2-ASK 4812
WK-2-ASK 4814
WK-2-ASK 4816
WK-2-ASK 4818
WK-2-ASK 4820
WK-2-ASK 4825
WK-2-ASK 4830
WK-2-ASK 4835
WK-2-ASK 4840		 6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0
35.0
40.0		 1.5-2.5
2.5-4.0
4.0-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0
16.0-21.0
21.0-25.0
25.0-30.0
30.0-35.0		 9.5
+0.0
-1.0		 1.1
±0.4		 4.9 27 　2.70 1300 1480
5.0
+0.08
-0.15		 WK-2-ASK 5006
WK-2-ASK 5008
WK-2-ASK 5010
WK-2-ASK 5012
WK-2-ASK 5014
WK-2-ASK 5016
WK-2-ASK 5018
WK-2-ASK 5020
WK-2-ASK 5025
WK-2-ASK 5030
WK-2-ASK 5035
WK-2-ASK 5040		 6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0
35.0
40.0		 1.5-2.5
2.5-4.5
4.5-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0
16.0-20.0
20.0-25.0
25.0-30.0
30.0-35.0		 9.5
+0.0
-1.0		 1.1
±0.4		 5.1 27

2.70

 1400 2000
6.0
+0.08
-0.15		 WK-2-ASK 6008
WK-2-ASK 6010
WK-2-ASK 6012
WK-2-ASK 6014
WK-2-ASK 6016
WK-2-ASK 6018
WK-2-ASK 6020
WK-2-ASK 6025
WK-2-ASK 6030		 8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0		 2.0-3.0
3.0-5.0
5.0-7.0
7.0-9.0
9.0-11.0
11.0-13.0
13.0-15.0
15.0-20.0
20.0-25.0		 12
+0.0
-1.5		 1.5
±0.4		 6.1 31

3.70

 2400 3000
6.4
+0.08
-0.15		 WK-2-ASK 6410
WK-2-ASK 6412
WK-2-ASK 6414
WK-2-ASK 6416
WK-2-ASK 6418
WK-2-ASK 6420
WK-2-ASK 6425
WK-2-ASK 6430
WK-2-ASK 6435
WK-2-ASK 6440		 10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0
35.0
40.0		 3.0-4.0
4.0-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-18.0
18.0-23.0
23.0-28.0
28.0-33.0		 13
+0.0
-1.5		 1.8
±0.4		 6.5 31

3.70

 2700 3200
　
