Product-DIN7337

 Special Type Rivet >> SPECIAL >> Alu./Steel Multi-grip WK-ASMG-LF-B

Alu./Steel Multi-grip WK-ASMG-LF-B
　

　

MATERIAL
BODY:   Aluminium
MANDREL:   Steel		 FINISH
BODY:   Polished
MANDREL:   Zinc Plated

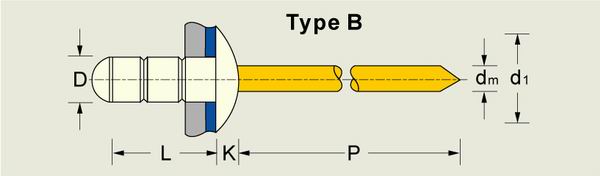

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10		 WK-ASMG-LF 3208-B
WK-ASMG-LF 3210-B
WK-ASMG-LF 3212-B
WK-ASMG-LF 3214-B
WK-ASMG-LF 3216-B		 8.0
10.0
12.0
14.0
16.0		 1.0-5.0
2.5-7.0
4.5-9.0
6.5-11.0
8.5-12.5		 9.5
+0.0
-0.5		 2.0 3.3 27 1.78 680 980
4.0
+0.08
-0.15		 WK-ASMG-LF 4008-B
WK-ASMG-LF 4010-B
WK-ASMG-LF 4012-B
WK-ASMG-LF 4014-B
WK-ASMG-LF 4016-B
WK-ASMG-LF 4018-B
WK-ASMG-LF 4020-B		 8.0
10.0
12.0
14.0
16.0
18.0
20.0		 1.0-5.0
1.5-6.5
3.5-8.5
5.5-10.5
6.5-12.5
9.5-14.5
11.5-16.5		 12
+0.0
-0.5		 2.2 4.1 27 2.18 950 1500
4.8
+0.08
-0.15		 WK-ASMG-LF 4810-B
WK-ASMG-LF 4812-B
WK-ASMG-LF 4814-B
WK-ASMG-LF 4816-B
WK-ASMG-LF 4818-B
WK-ASMG-LF 4820-B
WK-ASMG-LF 4824-B
WK-ASMG-LF 4825-B		 10.0
12.0
14.0
16.0
18.0
20.0
24.0
25.0		 1.0-6.0
2.0-8.0
4.0-10.0
6.0-12.0
8.0-14.0
10.0-16.0
12.0-20.0
12.0-21.0		 16
+0.0
-0.5		 2.5 4.9 27 2.78 1320 2000
　
