Product-DIN7337

 Special Type Rivet >> SPECIAL >> Alu./Stainless Steel Multi-grip WK-ABMG-B

Alu./Stainless Steel Multi-grip WK-ABMG-B
　

　

MATERIAL
BODY:   Aluminium
MANDREL:   Stainless Steel		 FINISH
BODY:   Polished
MANDREL:   Polished

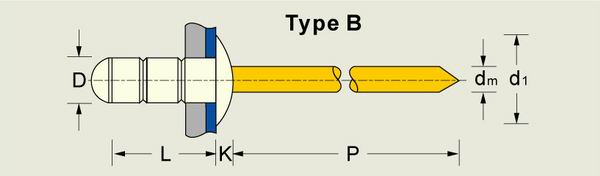

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10		 WK-ABMG 3206-B
WK-ABMG 3208-B
WK-ABMG 3210-B
WK-ABMG 3212-B
WK-ABMG 3214-B
WK-ABMG 3216-B		 6.0
8.0
10.0
12.0
14.0
16.0		 1.0-3.5
1.0-5.0
2.5-7.0
4.5-9.0
9.0-11.0
6.5-12.5		 6.0
±0.25		 1.4 3.3 27 1.78 680 980
4.0
+0.08
-0.15		 WK-ABMG 4006-B
WK-ABMG 4008-B
WK-ABMG 4010-B
WK-ABMG 4012-B
WK-ABMG 4014-B
WK-ABMG 4016-B
WK-ABMG 4018-B
WK-ABMG 4020-B		 6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0		 1.0-3.0
1.0-5.0
1.5-6.5
3.5-8.5
5.5-10.5
6.0-12.5
9.5-14.5
11.5-16.5		 8.0
±0.3		 1.7 4.1 27 2.18 950 1500
4.8
+0.08
-0.15		 WK-ABMG 4810-B
WK-ABMG 4812-B
WK-ABMG 4814-B
WK-ABMG 4816-B
WK-ABMG 4818-B
WK-ABMG 4820-B
WK-ABMG 4822-B
WK-ABMG 4824-B
WK-ABMG 4827-B
WK-ABMG 4830-B		 10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
27.0
30.0		 1.5-6.0
2.0-8.0
3.5-9.5
6.0-12.5
8.0-14.0
10.0-16.0
12.0-18.0
12.5-19.5
17.0-23.0
20.0-25.0		 9.5
±0.3		 2.0 4.9 27 2.78 1320 2000
　
