Product-DIN7337

 Special Type Rivet >> SPECIAL >> Alu./Steel Peel Type WK-ASP

Alu./Steel Peel Type WK-ASP




MATERIAL
BODY:   Aluminium
MANDREL:   Steel
FINISH
BODY:   Polished
MANDREL:   Zinc Plated

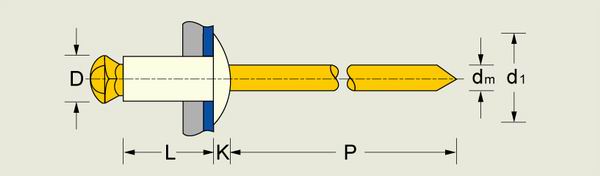

D Art. Code L
[+1/-0.2]
Grip Range d1 K
Max.
Drill
Φ
P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10
WK-ASP-3208
WK-ASP-3210
WK-ASP-3212
8.0
10.0
12.0
0.5-1.0
1.0-3.0
3.0-5.0
6.0
±0.25
1.02 3.4-3.5 27 1.8 800 720
4.0
+0.08
-0.15
WK-ASP-4010
WK-ASP-4012
WK-ASP-4014
WK-ASP-4016
WK-ASP-4020
WK-ASP-4025
WK-ASP-4030
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0
1.5-5.0
4.0-6.5
6.0-9.0
8.0-11.0
10.0-13.0
12.0-15.0
15.0-20.0
20.0-25.0
8.0
±0.3
1.4 4.2-4.3 27 2.2 1270 1160
4.8
+0.08
-0.15
WK-ASP-4810
WK-ASP-4812
WK-ASP-4814
WK-ASP-4816
WK-ASP-4818
WK-ASP-4820
WK-ASP-4822
WK-ASP-4825
WK-ASP-4830
WK-ASP-4835
WK-ASP-4840
10.0
12.0
14.0
16.0
18.0
20.0
22.0
25.0
30.0
35.0
40.0
1.5-4.0
2.0-6.0
4.0-8.0
6.0-9.5
8.0-12.0
10.0-14.0
12.0-16.0
16.0-19.0
19.0-24.0
24.0-29.0
29.0-34.0
9.5
±0.3
1.5 5.2-5.3 27 2.7 1870 1610
