Product-DIN7337

 Special Type Rivet >> SPECIAL >> Alu./Steel Grooved WK-ASG

Alu./Steel Grooved WK-ASG
　

　

MATERIAL
BODY:   5154 or 5754 Alu. Alloy
MANDREL:   Steel		 FINISH
BODY:   Polished
MANDREL:   Zinc Plated

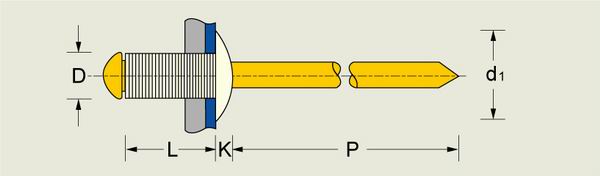

D Art. Code L
[+1/-0]mm		 Grip Range
Max.		 Depth
Min.
mm		 d1 K
Max.		 Hole Size
Nom.		 P
Min.

Shear
N

Tensile
N

3.2
1.8"		 WK-ASG 3210
WK-ASG 3212
WK-ASG 3214		 10.0
12.0
14.0		 6.0
8.0
10.0		 14.0
16.0
18.0		 6.4
+0.0
-0.6		 1.3 3.6 27 600 980
4.0
5/32"		 WK-ASG 4008
WK-ASG 4010
WK-ASG 4012
WK-ASG 4014
WK-ASG 4016
WK-ASG 4018		 8.0
10.0
12.0
14.0
16.0
18.0		 4.0
6.0
8.0
10.0
12.0
14.0		 13.0
15.0
17.0
19.0
21.0
23.0		 8.0
+0.0
-1.0		 1.7 4.4 27 900 1350
4.8
3/16"		 WK-ASG 4808
WK-ASG 4810
WK-ASG 4812
WK-ASG 4814
WK-ASG 4816
WK-ASG 4818
WK-ASG 4820
WK-ASG 4825
WK-ASG 4830		 8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0
30.0		 4.0
6.0
8.0
10.0
12.0
14.0
16.0
21.0
26.0		 14.0
16.0
18.0
20.0
22.0
24.0
26.0
31.0
36.0		 9.5
+0.0
-1.0		 2.0 5.3 27 1350 1880
　
