Product-IFI114

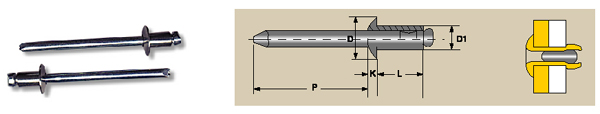

 Open Type Blind Rivet >> NORMAL >> Stainless Steel/Steel WK-BSK

不锈钢/钢开口型WK-BSK
　

　

MATERIAL
BODY:  Stainless Steel
MANDREL:  Steel		 FINISH
BODY:   Polished
MANDREL:   Zinc Plated
D1 NOM. DRILL NO. $HOLE SIZE ART.CODE GRIP RANGE L(MAX) D NOM. K
MAX. 		P MIN. SHEAR LBS TENSILE
LBS
INCH MM INCH MM
1/8"
3.2mm 		#30
3.3-3.4 		WK-BSK41 0.020-0.062 0.5-1.6 0.212 5.4 0.250"
6.4 		0.040"
1.02 		1.06"
27 		420
1870N 		530
2360N
WK-BSK42 0.063-0.125 1.6-3.2 0.275 7.0
WK-BSK43 0.126-0.187 3.2-4.8 0.337 8.6
WK-BSK44 0.188-0.250 4.8-6.4 0.400 10.2
WK-BSK45 0.251-0.312 6.4-7.9 0.462 11.7
WK-BSK46 0.313-0.375 7.9-9.5 0.525 13.3
WK-BSK48 0.376-0.500 9.5-12.7 0.650 16.5
5/32"
4.0mm 		#20
4.1-4.2 		WK-BSK52 0.020-0.125 0.5-3.2 0.300 7.6 0.312"
7.9 		0.050"
1.27 		1.06"
27 		650
2900N 		820
3650N
WK-BSK53 0.126-0.187 3.2-4.8 0.362 9.2
WK-BSK54 0.188-0.250 4.8-6.4 0.425 10.8
WK-BSK56 0.251-0.375 6.4-9.5 0.550 14.0
WK-BSK58 0.376-0.500 9.5-12.7 0.675 17.1
WK-BSK510 0.501-0.625 12.7-15.9 0.800 20.3
WK-BSK512 0.626-0.750 15.9-19.1 0.925 23.5
WK-BSK514 0.751-0.875 19.1-22.2 1.050 26.7
3/16"
4.8mm 		#11
4.9-5.0 		WK-BSK62 0.020-0.125 0.5-3.2 0.325 8.3 0.375"
9.5 		0.060"
1.52 		1.06"
27 		950
4230N 		1200
5340N
WK-BSK63 0.126-0.187 3.2-4.8 0.387 9.8
WK-BSK64 0.188-0.250 4.8-6.4 0.450 11.4
WK-BSK66 0.251-0.375 6.4-9.5 0.575 14.6
WK-BSK68 0.376-0.500 9.5-12.7 0.700 17.8
WK-BSK610 0.501-0.625 12.7-15.9 0.825 21.0
WK-BSK612 0.626-0.750 15.9-19.1 0.950 24.1
WK-BSK614 0.751-0.875 19.1-22.2 1.075 27.3
WK-BSK616 0.876-1.000 22.2-25.4 1.200 30.5
WK-BSK618 1.001-1.125 25.4-28.6 1.325 33.7
WK-BSK620 1.126-1.250 28.6-31.8 1.450 36.8
WK-BSK622 1.251-1.375 31.8-34.9 1.575 40.0
1/4"
6.4mm 		F
6.5-6.6 		WK-BSK82 0.020-0.125 0.5-3.2 0.375 9.5 0.500"
12.7 		0.080"
2.03 		1.25"
32 		1700
7570N 		2100 9350N
WK-BSK84 0.126-0.250 3.2-6.4 0.500 12.7
WK-BSK86 0.251-0.375 6.4-9.5 0.625 15.9
WK-BSK88 0.376-0.500 9.5-12.7 0.750 19.1
WK-BSK810 0.501-0.625 12.7-15.9 0.875 22.2
WK-BSK812 0.626-0.750 15.9-19.1 1.000 25.4
WK-BSK814 0.751-0.875 19.1-22.2 1.125 28.6
WK-BSK816 0.876-1.000 22.2-25.4 1.250 31.8
WK-BSK818 1.001-1.125 25.4-28.6 1.375 34.9
WK-BSK820 1.126-1.250 28.6-31.8 1.500 38.1
　
