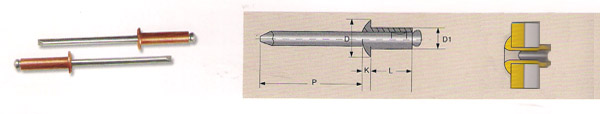

Open Type Blind Rivet >> NORMAL >> Copper/Steel WK-CSK |
|
|
|
|
|
MATERIAL BODY: Copper MANDREL: Steel |
FINISH BODY: Polished MANDREL: Zinc Plated | |
D1 NOM. |
DRILL NO. $HOLE SIZE |
ART.CODE |
GRIP RANGE |
L(MAX) |
D NOM. |
K MAX. |
P MIN. |
SHEAR LBS |
TENSILE LBS |
INCH |
MM |
INCH |
MM |
1/8" 3.2mm |
#30 3.3-3.4 |
WK-CSK41 |
0.020-0.062 |
0.5-1.6 |
0.212 |
5.4 |
0.250" 6.4 |
0.040" 1.02 |
1.06" 27 |
157 700N |
180 800N |
WK-CSK42 |
0.063-0.125 |
1.6-3.2 |
0.275 |
7.0 |
WK-CSK43 |
0.126-0.187 |
3.2-4.8 |
0.337 |
8.6 |
WK-CSK44 |
0.188-0.250 |
4.8-6.4 |
0.400 |
10.2 |
WK-CSK45 |
0.251-0.312 |
6.4-7.9 |
0.462 |
11.7 |
WK-CSK46 |
0.313-0.375 |
7.9-9.5 |
0.525 |
13.3 |
WK-CSK48 |
0.376-0.500 |
9.5-12.7 |
0.650 |
16.5 |
5/32" 4.0mm |
#20 4.1-4.2 |
WK-CSK52 |
0.020-0.125 |
0.5-3.2 |
0.300 |
7.6 |
0.312" 7.9 |
0.050" 1.27 |
1.06" 27 |
225 1000N |
337 1500N |
WK-CSK53 |
0.126-0.187 |
3.2-4.8 |
0.362 |
9.2 |
WK-CSK54 |
0.188-0.250 |
4.8-6.4 |
0.425 |
10.8 |
WK-CSK56 |
0.251-0.375 |
6.4-9.5 |
0.550 |
14.0 |
WK-CSK58 |
0.376-0.500 |
9.5-12.7 |
0.675 |
17.1 |
WK-CSK510 |
0.501-0.625 |
12.7-15.9 |
0.800 |
20.3 |
3/16" 4.8mm |
#11 4.9-5.0 |
WK-CSK62 |
0.020-0.125 |
0.5-3.2 |
0.325 |
8.3 |
0.375" 9.5 |
0.060" 1.52 |
1.06" 27 |
337 1500N |
450 2000N |
WK-CSK63 |
0.126-0.187 |
3.2-4.8 |
0.387 |
9.8 |
WK-CSK64 |
0.188-0.250 |
4.8-6.4 |
0.450 |
11.4 |
WK-CSK66 |
0.251-0.375 |
6.4-9.5 |
0.575 |
14.6 |
WK-CSK68 |
0.376-0.500 |
9.5-12.7 |
0.700 |
17.8 |
WK-CSK610 |
0.501-0.625 |
12.7-15.9 |
0.825 |
21.0 |
WK-CSK612 |
0.626-0.750 |
15.9-19.1 |
0.950 |
24.1 |
WK-CSK614 |
0.751-0.875 |
19.1-22.2 |
1.075 |
27.3 |
WK-CSK616 |
0.876-1.000 |
22.2-25.4 |
1.200 |
30.5 |
WK-CSK618 |
1.001-1.125 |
25.4-28.6 |
1.325 |
33.7 | | |
| |
|
|
