Product-IFI114

 Structural Rivet >> KF-BULB >> WK-DL

WK-DL


MATERIAL
BODY:  Aluminium Alloy
MANDREL:  Aluminium Alloy
FINISH
BODY:  Natural
MANDREL:  Natural

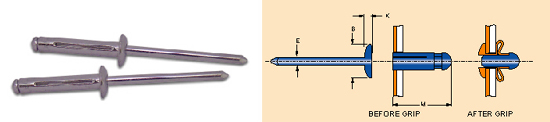

Size Drill Part No. M Grip Range B K E Shear Tensile
max max max max KN KN
4.0
(5/32")
WK-DL-0516 16.0 1.0-3.0 8.2 1.6 2.3 0.6 1.0

WK-DL-0523 21.2 1.0-7.0 8.2 1.6 2.3 0.6 1.0

4.8
(3/16")
WK-DL-0619 18.1 1.0-4.0 10.1 2.1 2.9 0.8 1.1

WK-DL-0625 23.3 1.0-9.0 10.1 2.1 2.9 0.8 1.1

WK-DL-0630 27.1 4.0-12.0 10.1 2.1 2.9 0.8 1.1
