Product-IFI114

 Structural Rivet >> UNIGRIP >> WK-BBP61

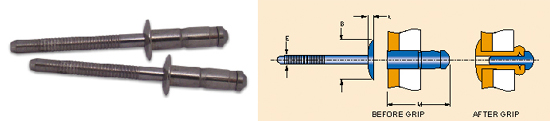

WK-BBP61
　

MATERIAL
BODY:  300 Series Stainless Steel
MANDREL:  300 Series Stainless Steel		 FINISH
BODY:   Natural
MANDREL:   Natural
Size Drill Part No. M Grip range B K E Shear Tensile
max max max max KN KN
3.2
(1/8") 		WK-BBP61-0408 8.9 1.0-3.0 6.6 1.1 2.1 1.6 2.0
  　   　 　   　 　
WK-BBP61-0411 11.4 3.0-5.0 6.6 1.1 2.1 1.7 2.0
  　   　 　   　 　
WK-BBP61-0414 13.6 5.0-7.0 6.6 1.1 2.1 3.2 2.0
  　         　 　
4.0
(5/32") 		WK-BBP61-0509 10.1 1.0-3.0 8.0 1.5 2.6 5.2 4.0
  　         　 　
WK-BBP61-0512 12.5 3.0-5.0 8.0 1.5 2.6 5.2 4.0
  　         　 　
WK-BBP61-0516 15.1 5.0-7.0 8.0 1.5 2.6 5.2 4.0
  　         　 　
4.8
(3/16") 		WK-BBP61-0611 12.9 1.5-3.5 9.6 1.5 3.1 5.5 5.0
  　         　 　
WK-BBP61-0614 15.5 3.5-6.0 9.6 1.5 3.1 5.5 5.0
  　         　 　
WK-BBP61-0618 18.5 6.0-8.5 9.6 1.5 3.1 5.5 5.0
  　
　
