 Structural Rivet >> UNIGRIP >> WK-SSP-01

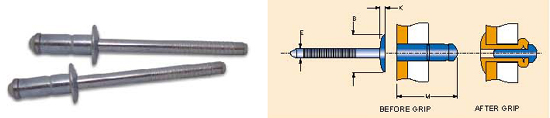

WK-SSP-01
　

MATERIAL
BODY:  Carbon Steel
MANDREL:  Carbon Steel		 FINISH
BODY:   Zinc Plated
MANDREL:   Zinc Plated
Size Drill Part No. M Grip range B K E Shear Tensile
max max max max KN KN
3.2
(1/8") 		WK-SSP-01-0408 8.7 1.0-3.0 6.8 1.4 2.1 1.2 1.3

WK-SSP-01-0411 11.3 3.0-5.0 6.8 1.4 2.1 1.7 1.3

WK-SSP-01-0414 13.6 5.0-7.0 6.8 1.4 2.1 2.5 1.3

4.0
(5/32") 		WK-SSP-01-0509 10.1 1.0-3.0 8.0 1.5 2.6 2.4 2.8

WK-SSP-01-0512 12.1 3.0-5.0 8.0 1.5 2.6 3.5 2.8

WK-SSP-01-0516 15.1 5.0-7.0 8.0 1.5 2.6 4.1 2.8

4.8
(3/16") 		WK-SSP-01-0611 12.1 1.5-3.5 9.6 1.5 3.1 3.6 3.8

WK-SSP-01-0614 14.6 3.5-6.0 9.6 1.5 3.1 4.2 3.8

WK-SSP-01-0618 17.6 6.0-8.5 9.6 1.5 3.1 5.6 3.8

6.0 WK-SSP-01-6010 14.2 1.5-4.0 12.3 2.1 4.0 4.2 5.4

WK-SSP-01-6013 17.2 3.0-6.0 12.3 2.1 4.0 5.4 5.4

WK-SSP-01-6016 20.2 6.0-9.0 12.3 2.1 4.0 8.5 5.4

WK-SSP-01-6019 23.2 9.0-12.0 12.3 2.1 4.0 8.5 5.4

　
