Product-IFI114

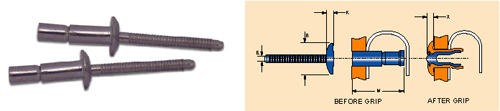

 Structural Rivet >> KF-BOLT SERIES >> WK-AA71


  WK-AA71


MATERIAL
 BODY: Aluminium Alloy
 MANDREL: Aluminium Alloy
FINISH
BODY:  Natural
MANDREL:  Natural
Size Drill Part No. M Grip Range B K E X Shear Tensile PULL
OUT
max max max max max KN KN N
4.8
(3/16")
WK-AA71-4810 18.2 1.63-6.86 10.1 2.1 2.9 2.9 2.4 2.0 ≥ 222

WK-AA71-4814 24.4 1.63-11.10 10.1 2.1 2.9 2.9 2.4 2.0 ≥ 222

6.4
( 1/4 ")
WK-AA71-6414 23.7 2.03-9.53 13.3 2.9 3.9 3.7 5.6 3.7 ≥ 445

WK-AA71-6419 32.9 2.03-15.87 13.3 2.9 3.9 3.7 5.6 3.7 ≥ 445
