Product-IFI114

 Structural Rivet >> KF-BOLT SERIES >> WK-SSNC

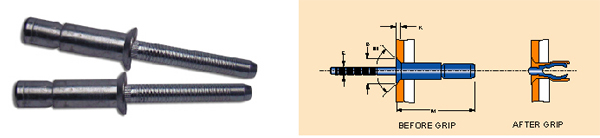

WK-SSNC
　

MATERIAL
BODY:  Carbon Steel
MANDREL:  Carbon Steel		 FINISH
BODY:  Zinc Plated
MANDREL:  Zinc Plated
Size Drill Part No. M Grip Range B K E Shear Tensile
max max max max KN KN
4.8
(3/16")		 WK-SSNC-4810 20.2 3.17-8.41 8.8 1.8 3.1 5.4 4.0
　 　 　 　 　 　 　 　
6.4
(1/4")		 WK-SSNC-6414 28.3 4.32-12.06 10.6 2.0 4.1 10.5 8.0
　 　 　 　 　 　 　 　
　
　
