Product-IFI114

 Closed Type Blind Rivet >> NORMAL >> Steel/Steel WK-SSF

Steel/Steel WK-SSF
　

MATERIAL
BODY:  Steel
MANDREL:  Steel		 FINISH
BODY:   Zinc Plated
MANDREL:   Zinc  Plated
　

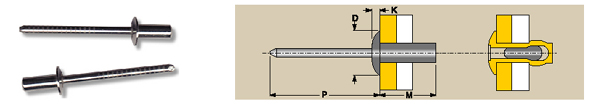

D1
NOM. 		DRILL NO.
&HOLE SIZE 		ART.CODE GRIP RANGE L(MAX) D
NOM. 		K
MAX. 		P
MIN. 		SHEAR
LBS 		TENSILE
LBS
INCH MM INCH MM
1/8"
3.2mm 		#30
3.3-3.4 		WK-SSF41 0.020-0.062 0.5-1.6 0.297 7.5 0.238"
9.5		 0.050"
2.1		 1.06"
27 		258
1150N 		292
1300N
WK-SSF42 0.063-0.125 1.6-3.2 0.360 9.1
WK-SSF43 0.126-0.187 3.2-4.8 0.422 10.7
WK-SSF44 0.188-0.250 4.8-6.4 0.485 12.3
WK-SSF45 0.251-0.312 6.4-7.9 0.547 13.9
WK-SSF46 0.313-0.375 7.9-9.5 0.610 15.5
WK-SSF48 0.376-0.500 9.5-12.7 0.735 18.7
5/32"
4.0mm 		#20
4.1-4.2 		WK-SSF52 0.020-0.125 0.5-3.2 0.375 9.5 0.312"
7.9		 0.065"
1.65		 1.06"
27 		380
1700N 		418
1860N
WK-SSF53 0.126-0.187 3.2-4.8 0.437 11.1
WK-SSF54 0.188-0.250 4.8-6.4 0.500 12.7
WK-SSF55 0.251-0.312 6.4-7.9 0.562 14.3
WK-SSF56 0.313-0.375 7.9-9.5 0.625 15.9
WK-SSF58 0.376-0.500 9.5-12.7 0.750 19.1
3/16"
4.8mm 		#11
4.9-5.0 		WK-SSF62 0.020-0.125 0.5-3.2 0.406 10.3 0.375"
9.5		 0.080"
2.03		 1.06"
27 		540
2400N 		630 2800N
WK-SSF63 0.126-0.187 3.2-4.8 0.468 11.9
WK-SSF64 0.188-0.250 4.8-6.4 0.531 13.5
WK-SSF66 0.251-0.375 6.4-9.5 0.656 16.7
WK-SSF68 0.376-0.500 9.5-12.7 0.781 19.8
WK-SSF610 0.501-0.625 12.7-15.9 0.906 23.0
WK-SSF612 0.626-0.750 15.9-19.1 1.026 26.1
1/4"
6.4mm 		F
6.5-6.6		 WK-SSF82 0.020-0.125 0.5-3.2 0.445 11.3 0.500"
12.7		 0.100"
2.54		 1.25"
32		 810
3600N 		900 4000N
WK-SSF84 0.126-0.250 3.2-6.4 0.570 14.5
WK-SSF86 0.251-0.375 6.4-9.5 0.695 17.7
WK-SSF88 0.376-0.500 9.5-12.7 0.820 20.8
WK-SSF810 0.501-0.625 12.7-15.9 0.945 24.0
WK-SSF812 0.626-0.750 15.9-19.1 1.070 27.2
WK-SSF814 0.751-0.875 19.1-22.2 1.195 30.4
WK-SSF816 0.876-1.000 22.2-25.4 1.320 33.5
　
　
