Product-IFI114

 Closed Type Blind Rivet >> NORMAL >> Alu./Stainless Steel WK-ABF

Alu./Stainless Steel WK-ABF
　

MATERIAL
BODY:  5056  Alu.Alloy
MANDREL:  Stainless Steel		 FINISH
BODY:   Polished
MANDREL:   Polished
　

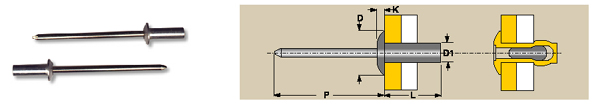

D1
NOM. 		DRILL NO.
&HOLE SIZE 		ART.CODE GRIP RANGE L(MAX) D
NOM. 		K
MAX. 		P
MIN. 		SHEAR
LBS 		TENSILE
LBS
INCH MM INCH MM
1/8"
3.2mm 		#30
3.3-3.4 		WK-ABF41 0.020-0.062 0.5-1.6 0.297 7.5 0.238"
6.0		 0.050"
1.27		 1.06"
27 		240
1070N 		280
1250N
WK-ABF42 0.063-0.125 1.6-3.2 0.360 9.1
WK-ABF43 0.126-0.187 3.2-4.8 0.422 10.7
WK-ABF44 0.188-0.250 4.8-6.4 0.485 12.3
WK-ABF45 0.251-0.312 6.4-7.9 0.547 13.9
WK-ABF46 0.313-0.375 7.9-9.5 0.610 15.5
WK-ABF48 0.376-0.500 9.5-12.7 0.735 18.7
5/32"
4.0mm 		#20
4.1-4.2 		WK-ABF52 0.020-0.125 0.5-3.2 0.375 9.5 0.312"
7.9		 0.065"
1.65		 1.06"
27 		350
1560N 		480
2140N
WK-ABF53 0.126-0.187 3.2-4.8 0.437 11.1
WK-ABF54 0.188-0.250 4.8-6.4 0.500 12.7
WK-ABF55 0.251-0.312 6.4-7.9 0.562 14.3
WK-AS56F 0.313-0.375 7.9-9.5 0.625 15.9
WK-ABF58 0.376-0.500 9.5-12.7 0.750 19.1
3/16"
4.8mm 		#11
4.9-5.0 		WK-ABF62 0.020-0.125 0.5-3.2 0.406 10.3 0.375"
9.5		 0.080"
2.03		 1.06"
27 		500
2230N 		690 3070N
WK-ABF63 0.126-0.187 3.2-4.8 0.468 11.9
WK-ABF64 0.188-0.250 4.8-6.4 0.531 13.5
WK-ABF66 0.251-0.375 6.4-9.5 0.656 16.7
WK-ABF68 0.376-0.500 9.5-12.7 0.781 19.8
WK-ABF610 0.501-0.625 12.7-15.9 0.906 23.0
WK-ABF612 0.626-0.750 15.9-19.1 1.026 26.1
1/4"
6.4mm 		F
6.5-6.6		 WK-ABF82 0.020-0.125 0.5-3.2 0.445 11.3 0.500"
12.7		 0.100"
2.54		 1.25"
32		 900
4000N 		1100 4890N
WK-ABF84 0.126-0.250 3.2-6.4 0.570 14.5
WK-ABF86 0.251-0.375 6.4-9.5 0.695 17.7
WK-ABF88 0.376-0.500 9.5-12.7 0.820 20.8
WK-ABF810 0.501-0.625 12.7-15.9 0.945 24.0
WK-ABF812 0.626-0.750 15.9-19.1 1.070 27.2
WK-ABF814 0.751-0.875 19.1-22.2 1.195 30.4
WK-ABF816 0.876-1.000 22.2-25.4 1.320 33.5
　
　
