Product-IFI114

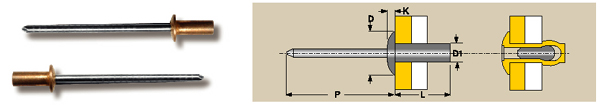

 Closed Type Blind Rivet >> NORMAL >> Copper/Stainless Steel WK-CBF

Copper/Stainless Steel WK-CBF


MATERIAL
 BODY:  Copper
 MANDREL:   Stainless Steel
FINISH
BODY:   Polished
 MANDREL:  Polished

D1 NOM. DRILL NO. &HOLE SIZE ART.CODE GRIP RANGE L(MAX) D NOM. K
MAX.
P MIN. SHEAR LBS TENSILE LBS
INCH MM INCH MM
1/8"
3.2
#30
3.3-3.4
WK-CBF41 0.020-0.062 0.5-1.6 0.279 7.5 0.238"
6.0
0.050"
1.27
1.06"
27
220
980N
300
1340N
WK-CBF42 0.063-0.125 1.6-3.2 0.360 9.1
WK-CBF43 0.126-0.187 3.2-4.8 0.422 10.7
WK-CBF44 0.188-0.250 4.8-6.4 0.485 12.3
WK-CBF45 0.251-0.312 6.4-7.9 0.547 13.9
WK-CBF46 0.313-0.375 7.9-9.5 0.610 15.5
WK-CBF48 0.376-0.500 9.5-12.7 0.735 18.7
5/32"
4.0
#20
4.1-4.2
WK-CBF52 0.020-0.125 0.5-3.2 0.375 9.5 0.312"
7.9
0.065"
1.65
1.06"
27
305
1350N
450
2000N
WK-CBF53 0.126-0.187 3.2-4.8 0.437 11.1
WK-CBF54 0.188-0.250 4.8-6.4 0.500 12.7
WK-CBF55 0.251-0.312 6.4-7.9 0.562 14.3
WK-CBF56 0.313-0.375 7.9-9.5 0.625 15.9
WK-CBF58 0.376-0.500 9.5-12.7 0.750 19.1
3/16"
4.8
#11
4.9-5.0
WK-CBF62 0.020-0.125 0.5-3.2 0.406 10.3 0.375"
9.5
0.080"
2.03
1.06"
27
438
1950N
630
2800N
WK-CBF63 0.126-0.187 3.2-4.8 0.468 11.9
WK-CBF54 0.188-0.250 4.8-6.4 0.631 13.5
WK-CBF66 0.251-0.375 6.4-9.5 0.656 16.7
WK-CBF68 0.376-0.500 9.5-12.7 0.781 19.8
WK-CBF610 0.501-0.625 12.7-15.9 0.906 23.0
WK-CBF612 0.626-0.750 15.9-19.1 1.026 26.1
