Product-IFI114

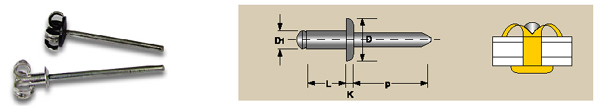

 Open Type Blind Rivet >> SPECIAL >> Alu./Steel Peel Type WK-ASP

开花型WK-ASP


MATERIAL
BODY:  5056  Alu.Alloy
MANDREL:  Steel
FINISH
BODY:   Polished
MANDREL:   Zinc Plated

D1 NOM. HOLE SIZE ART.CODE GRIP RANGE L(MAX) D
NOM.
K
MAX.
P
MIN.
SHEAR
LBS
TENSILE
LBS
INCH MM INCH MM
1/8"
3.2mm
0.136"
3.4-3.5
WK-ASP43 0.059-0.187 1.5-4.8 0.406 10.3 0.250"
6.4
0.040"
1.02
1.06"
27
180
800N
160
720N
WK-ASP44 0.188-0.250 4.8-6.4 0.469 11.9
WK-ASP45 0.251-0.312 6.4-7.9 0.528 13.4
WK-ASP46 0.313-0.375 7.9-9.5 0.591 15.0
WK-ASP48 0.376-0.500 9.5-12.7 0.717 18.2
5/32"
4.0mm
0.167"
4.2-4.3
WK-ASP53 0.126-0.187 3.2-4.8 0.445 11.3 0.312"
7.9
0.050"
1.27
1.06"
27
285
1270N
260
1160N
WK-ASP54 0.188-0.250 4.8-6.4 0.508 12.9
WK-ASP56 0.251-0.375 6.4-9.5 0.630 16.0
WK-ASP58 0.376-0.500 9.5-12.7 0.756 19.2
WK-ASP510 0.501-0.625 12.7-15.9 0.882 22.4
WK-ASP512 0.626-0.750 15.9-19.1 1.008 25.6
WK-ASP514 0.751-0.875 19.1-22.2 1.130 28.7
3/16"
4.8mm
0.199"
5.1-5.2
WK-ASP63 0.126-0.187 3.2-4.8 0.472 12.0 0.375"
9.5
0.060"
1.52
1.06"
27
420
1870N
362
1610N
WK-ASP64 0.188-0.250 4.8-6.4 0.535 13.6
WK-ASP66 0.251-0.375 6.4-9.5 0.657 16.7
WK-ASP68 0.376-0.500 9.5-12.7 0.783 19.9
WK-ASP610 0.501-0.625 12.7-15.9 0.910 23.1
WK-ASP612 0.626-0.750 15.9-19.1 1.035 26.3
WK-ASP614 0.751-0.875 19.1-22.2 1.157 29.4
WK-ASP616 0.876-1.000 22.2-25.4 1.283 32.6
WK-ASP618 1.001-1.125 25.4-28.6 1.410 35.8
