Product-IFI114

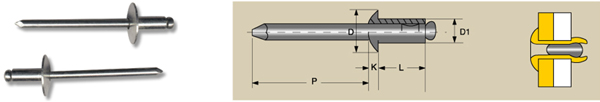

 Open Type Blind Rivet >> LARGE HEAD >> Alu./Alu. WK-AAKLF

Alu./Alu. WK-AAKLF


MATERIAL
BODY:   5052  Alu. Alloy
MANDREL:    Alu. Alloy
FINISH
BODY:  Polished
MANDREL:  Polished

D1
NOM.
DRILL NO. &HOLE SIZE ART. CODE GRIP RANGE L (MAX) D
NOM.
K
MAX
P
MIN.
SHEAR
LBS
TENSILE
LBS
INCH MM INCH MM
1/8"
3.2mm
#30
3.3-3.4
WK-AAK42LF 0.063-0.125 1.6-3.2 0.275 7.0 0.375"
9.5
0.065"
1.65
1.06"
27
120
530N
150
670N
WK-AAK43LF 0.126-0.187 3.2-4.8 0.337 8.6
WK-AAK44LF 0.188-0.250 4.8-6.4 0.400 10.2
WK-AAK45LF 0.251-0.312 6.4-7.9 0.462 11.7
WK-AAK46LF 0.313-0.375 7.9-9.5 0.525 13.3
WK-AAK48LF 0.376-0.500 9.5-12.7 0.650 16.5
WK-AAK410LF 0.501-0.625 12.7-15.9 0.775 19.7
5/32"
4.0mm
#20
4.1-4.2
WK-AAK52LF 0.020-0.125 0.5-3.2 0.300 7.6 0.468"
12.0
0.075"
1.90
1.06"
27
190
850N
230
1020N
WK-AAK53LF 0.126-0.187 3.2-4.8 0.362 9.2
WK-AAK54LF 0.188-0.250 4.8-6.4 0.425 10.8
WK-AAK56LF 0.251-0.375 6.4-9.5 0.550 14.0
WK-AAK58LF 0.376-0.500 9.5-12.7 0.675 17.1
WK-AAK510LF 0.501-0.625 12.7-15.9 0.800 20.3
3/16"
4.8mm
#11
4.9-5.0
WK-AAK62LF 0.020-0.125 0.5-3.2 0.325 8.3 0.625"
16.0
0.092"
2.33
1.06"
27
260
1160N
320
1430N
WK-AAK63LF 0.126-0.187 3.2-4.8 0.387 9.8
WK-AAK64LF 0.188-0.250 4.8-6.4 0.450 11.4
WK-AAK66LF 0.251-0.375 6.4-9.5 0.575 14.6
WK-AAK68LF 0.376-0.500 9.5-12.7 0.700 17.8
WK-AAK610LF 0.501-0.625 12.7-15.9 0.825 21.0
WK-AAK612LF 0.626-0.750 15.9-19.1 0.950 24.1
WK-AAK614LF 0.751-0.875 19.1-22.2 1.075 27.3
WK-AAK616LF 0.876-1.000 22.2-25.4 1.200 30.5
WK-AAK618LF 1.001-1.125 25.4-28.6 1.325 33.7
