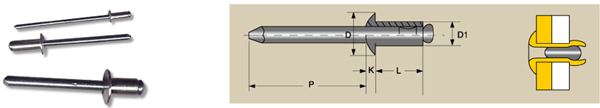

Open Type Blind Rivet >> NORMAL >> 5056 Alu./Steel WK-5-ASK |
|
|
|
|
|
MATERIAL BODY: 5056 Alu.Alloy MANDREL: Steel |
FINISH BODY: Polished MANDREL: Zinc Plated |
| |
D1 NOM. |
DRILL NO. &HOLE SIZE |
ART. CODE |
GRIP RANGE |
L (MAX) |
D NOM. |
K MAX |
P MIN. |
SHEAR LBS |
TENSILE LBS |
INCH |
MM |
INCH |
MM |
3/32" 2.4mm |
#41 2.5-2.6 |
WK-5-ASK32 |
0.020-0.125 |
0.5-3.2 |
0.250 |
6.4 |
0.188" 4.8 |
0.032" 0.81 |
1.00" 25.4 |
90 400N |
120 535N |
WK-5-ASK34 |
0.126-0.250 |
3.2-6.4 |
0.375 |
9.5 |
WK-5-ASK36 |
0.251-0.375 |
6.4-9.5 |
0.500 |
12.7 |
1/8" 3.2mm |
#30 3.3-3.4 |
WK-5-ASK41 |
0.020-0.062 |
0.5-1.6 |
0.212 |
5.4 |
0.250" 6.4 |
0.040" 1.02 |
1.06" 27 |
170 760N |
220 980N |
WK-5-ASK42 |
0.063-0.125 |
1.6-3.2 |
0.275 |
7.0 |
WK-5-ASK43 |
0.126-0.187 |
3.2-4.8 |
0.337 |
8.6 |
WK-5-ASK44 |
0.188-0.250 |
4.8-6.4 |
0.400 |
10.2 |
WK-5-ASK45 |
0.251-0.312 |
6.4-7.9 |
0.462 |
11.7 |
WK-5-ASK46 |
0.313-0.375 |
7.9-9.5 |
0.525 |
13.3 |
WK-5-ASK48 |
0.376-0.500 |
9.5-12.7 |
0.650 |
16.5 |
WK-5-ASK410 |
0.501-0.625 |
12.7-15.9 |
0.755 |
19.7 |
5/32" 4.0mm |
#20 4.2-4.2 |
WK-5-ASK52 |
0.020-0.125 |
0.5-3.2 |
0.300 |
7.6 |
0.312" 7.9 |
0.050" 1.27 |
1.06" 27 |
260 1160N |
350 1560N |
WK-5-ASK53 |
0.126-0.187 |
3.2-4.8 |
0.362 |
9.2 |
WK-5-ASK54 |
0.188-0.250 |
4.8-6.4 |
0.425 |
10.8 |
WK-5-ASK56 |
0.251-0.375 |
6.4-9.5 |
0.550 |
14.0 |
WK-5-ASK58 |
0.376-0.500 |
9.5-12.7 |
0.675 |
17.1 |
WK-5-ASK510 |
0.501-0.625 |
12.7-15.9 |
0.800 |
20.3 |
WK-5-ASK516 |
0.876-1.000 |
22.2-25.4 |
1.175 |
29.8 |
3/16" 4.8mm |
#11 4.9-5.0 |
WK-5-ASK62 |
0.020-0.125 |
0.5-3.2 |
0.325 |
8.3 |
0.375" 9.5 |
0.060" 1.52 |
1.06" 27 |
380 1700N |
500 2230N |
WK-5-ASK63 |
0.126-0.187 |
3.2-4.8 |
0.387 |
9.8 |
WK-5-ASK64 |
0.188-0.250 |
4.8-6.4 |
0.450 |
11.4 |
WK-5-ASK66 |
0.251-0.375 |
6.4-9.5 |
0.575 |
14.6 |
WK-5-ASK68 |
0.376-0.500 |
9.5-12.7 |
0.700 |
17.8 |
WK-5-ASK610 |
0.501-0.625 |
12.7-15.9 |
0.825 |
21.0 |
WK-5-ASK612 |
0.626-0.750 |
15.9-19.1 |
0.950 |
24.1 |
WK-5-ASK614 |
0.751-0.875 |
19.1-22.2 |
1.075 |
27.3 |
WK-5-ASK616 |
0.876-1.000 |
22.2-25.4 |
1.200 |
30.5 |
WK-5-ASK618 |
1.001-1.125 |
25.4-29.6 |
1.325 |
33.7 |
WK-5-ASK622 |
1.251-1.375 |
31.8-34-.9 |
1.575 |
40.0 |
1/4" 6.4mm |
F 6.5-6.6 |
WK-5-ASK82 |
0.020-0.125 |
0.5-3.2 |
0.375 |
9.5 |
0.500" 12.7 |
0.080" 2.03 |
1.25" 32 |
700 3120N |
920 4100N |
WK-5-ASK84 |
0.126-0.250 |
3.2-6.4 |
0.500 |
12.7 |
WK-5-ASK86 |
0.251-0.375 |
6.4-9.5 |
0.625 |
15.9 |
WK-5-ASK88 |
0.376-0.500 |
9.5-12.7 |
0.750 |
19.1 |
WK-5-ASK810 |
0.501-0.625 |
12.7-15.9 |
0.875 |
22.2 |
WK-5-ASK812 |
0.626-0.750 |
15.9-19.1 |
1.000 |
25.4 |
WK-5-ASK814 |
0.751-0.875 |
19.1-22.2 |
1.125 |
28.6 |
WK-5-ASK816 |
0.876-1.000 |
22.2-25.4 |
1.250 |
31.8 |
WK-5-ASK818 |
1.001-1.125 |
25.4-28.6 |
1.375 |
34.9 | | |
| |
|
|
